The Complete Guide to Enterprise Architecture

Executive Summary. Enterprise Architecture (EA) is the discipline that connects strategic intent to portfolio decisions across business capabilities, applications, data, and technology. Mature EA programs reduce duplication, accelerate transformation, and provide executives with evidence for funding and risk conversations. This guide synthesizes frameworks, domains, operating models, and governance into a practical roadmap. Whether you are launching EA or resetting a stalled program, use it as your reference for building capability that delivers measurable outcomes.

What Enterprise Architecture Is—and Is Not

Enterprise Architecture describes the structure of an organization’s key business processes, capabilities, information assets, applications, and technology—and the relationships among them. It exists to improve decision quality at scale: which systems to retire, which platforms to standardize, how data flows support customer experiences, and where investment accelerates strategy.

EA is not a one-time blueprint exercise, a diagramming hobby, or a project gatekeeping bureaucracy. Programs that treat architecture as static Visio collections or ceremonial review boards fail to influence outcomes. Effective EA is a living capability embedded in planning, procurement, and delivery.

The scope is enterprise-wide and multi-year. Solution architecture focuses on single initiatives; software architecture on products; infrastructure architecture on platforms. Enterprise architects operate at the intersection of business strategy, portfolio management, and technical standards.

Larkinized LLC defines success when executives can answer portfolio questions with confidence and project teams experience architecture as acceleration—not obstruction.

• Aligns strategy to executable roadmaps
• Govern standards that reduce rework and risk
• Provides portfolio visibility for CIO and business leaders
• Enables transformation at scale (cloud, M&A, modernization)

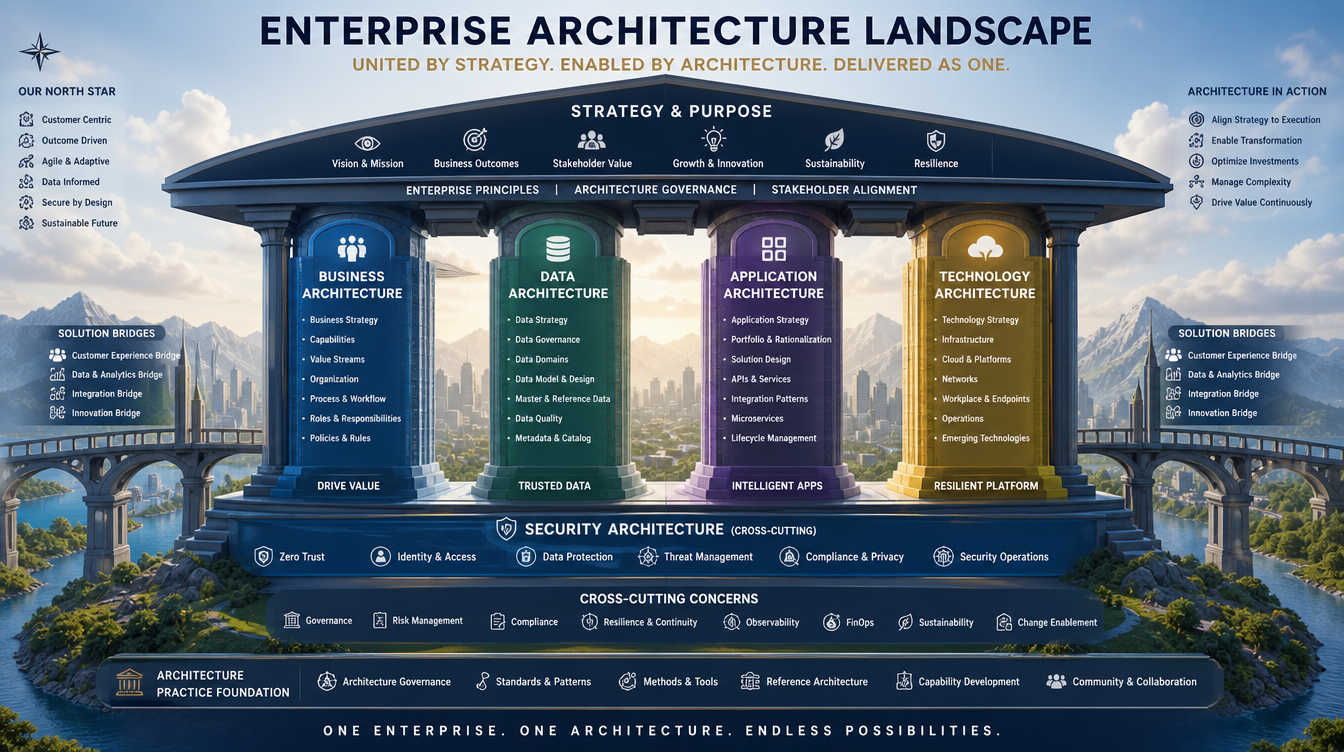

The Four Architecture Domains

Business Architecture maps capabilities, value streams, organization, and information concepts to strategy. It answers whether IT investments support differentiated capabilities and where gaps block growth or efficiency.

Application Architecture defines application portfolio structure, integration patterns, and lifecycle rules. Rationalization, microservices boundaries, and ERP extension strategies live here.

Data Architecture governs data entities, lineage, quality, master data, and analytics platforms. Regulatory reporting, AI readiness, and customer 360 initiatives depend on coherent data architecture.

Technology Architecture covers platforms, cloud landing zones, networks, middleware, and engineering standards. It ensures workloads land on supported, secure, cost-effective infrastructure.

Frameworks: TOGAF, Zachman, and Pragmatic Blends

TOGAF remains the most widely adopted EA framework, centered on the Architecture Development Method (ADM), architecture repository, and governance. Organizations rarely implement ADM verbatim—they tailor phases to planning cycles and transformation programs.

The Zachman Framework provides a classification matrix (what, how, where, who, when, why) useful for completeness checks rather than process. It complements TOGAF by ensuring artifacts address multiple stakeholder perspectives.

BIZBOK, FEAF, and industry models (BIAN for banking, TM Forum for telecom) add domain specificity. Larkinized LLC recommends minimal viable framework adoption: principles, capability maps for strategic domains, reference architectures for top platforms, and decision logs.

Framework dogma kills adoption. Executives care about decisions and dollars; practitioners need enough rigor to maintain consistency. Balance notation with narrative and dashboards.

Architecture Development Method in Practice

ADM phases—Preliminary, A, B, C, D, E, F, G, H—map loosely to charter establishment, business architecture, IS architecture, technology architecture, opportunities, migration planning, governance, change management, and adaptation.

Run ADM as iterative cycles tied to annual planning and major programs, not a waterfall once per decade. Each cycle produces updated baseline and target states plus migration increments.

Architecture Vision (Phase A) secures sponsorship and scope. Without executive mandate, subsequent phases lack authority. Larkinized clients spend disproportionate time here relative to textbook recommendations because political alignment determines success.

Migration planning (Phase E) must connect to funded programs. Roadmaps without decommission and modernization budgets are aspirational fiction.

Operating Models for EA Teams

Centralized EA concentrates standards, portfolio analytics, and ARB operations. It works when IT is centralized and the CIO owns portfolio funding. Risk: ivory tower perception if enablement services are weak.

Federated EA embeds architects in business units with a thin central council setting principles and metamodel. It works for diversified corporations with strong BU P&L ownership. Risk: inconsistent standards without central enforcement mechanisms.

Embedded/product-aligned EA assigns architects to digital product lines—common in SaaS and platform companies. Enterprise scope shrinks to cross-cutting platforms, data, and security while product teams own local decisions.

Choose based on decision rights and funding flows, not org chart aesthetics. Revisit operating model every 18–24 months as transformation matures.

Governance, ARB, and Decision Rights

Architecture governance defines who decides what, when exceptions are allowed, and how compliance is measured. The Architecture Review Board (ARB) is a decision forum—not a weekly slide review.

Effective ARBs publish intake criteria, SLAs, architecture decision records (ADRs), and escalation paths. They review programs above spend or risk thresholds and standards changes—not every minor config tweak.

Principles should be few, memorable, and enforced through funding gates. Example: “Cloud-first for new customer-facing capabilities unless latency or regulatory constraints documented.”

Larkinized LLC implements tiered governance: lightweight self-service patterns for low-risk work, full ARB for portfolio-impacting choices.

Tools, Repositories, and Portfolio Analytics

EA tools (LeanIX, Ardoq, Bizzdesign, Mega, ServiceNow APM) accelerate inventory, dependency analysis, and scenario planning. Tool selection follows use case clarity—APM-led cloud programs differ from ArchiMate-heavy modeling shops.

Repository value equals data quality times stakeholder usage. Integrate HR, CMDB, cloud billing, and ERP metadata; assign application owners; review quarterly.

Start with decisions that need data, not data for its own sake. First inventory should answer: top ten retirement candidates and top five integration risks.

Open-source tooling (Archi) plus governed wikis can suffice at early maturity if curators exist.

Maturity, Metrics, and ROI

EA maturity models (Gartner, TOGAF capability levels) progress from ad hoc to optimized. Most organizations stall between Level 2 (repeatable) and Level 3 (defined) without sponsorship and funded remediation.

Measure leading indicators: portfolio coverage, standards adoption, ARB cycle time, exception remediation. Lagging indicators: app count trend, technical debt spend, project overrun rates.

ROI narratives combine avoided duplication, accelerated migrations, and audit risk reduction. Finance validates savings when apps retire or vendors consolidate.

Publish annual EA value reports to sustain budgets. Architecture compounds over 24–36 months.

Common Failure Patterns and Recovery

Failures include tool-first spending, gatekeeper ARBs, missing sponsors, and metrics that reward diagram volume. Recovery resets charter, focuses on one sponsored outcome in 90 days, and rebuilds trust through visible wins.

Avoid hiring architects before mandate clarity. Fractional chief architects often stabilize programs faster than mis-scoped FTE searches.

Business architecture neglect strands EA in IT-only conversations. Engage COO and BU presidents on capability heatmaps tied to strategy.

Consulting should transfer knowledge; permanent dependency signals operating model failure.

Getting Started: 90-Day Launch Plan

Days 1–30: Secure sponsor, publish charter and principles, inventory top 50 applications with owners, schedule ARB cadence.

Days 31–60: Deliver first reference architecture (cloud landing zone or integration standards), run first rationalization workshop, establish tool or spreadsheet MVP.

Days 61–90: Retire or consolidate one visible system, publish ADRs for two major decisions, present portfolio dashboard to executive team.

Larkinized LLC accelerates launch with assessments, operating model design, and chief architect interim leadership tailored to your industry and complexity.
